In Partnership with Leman Aviation

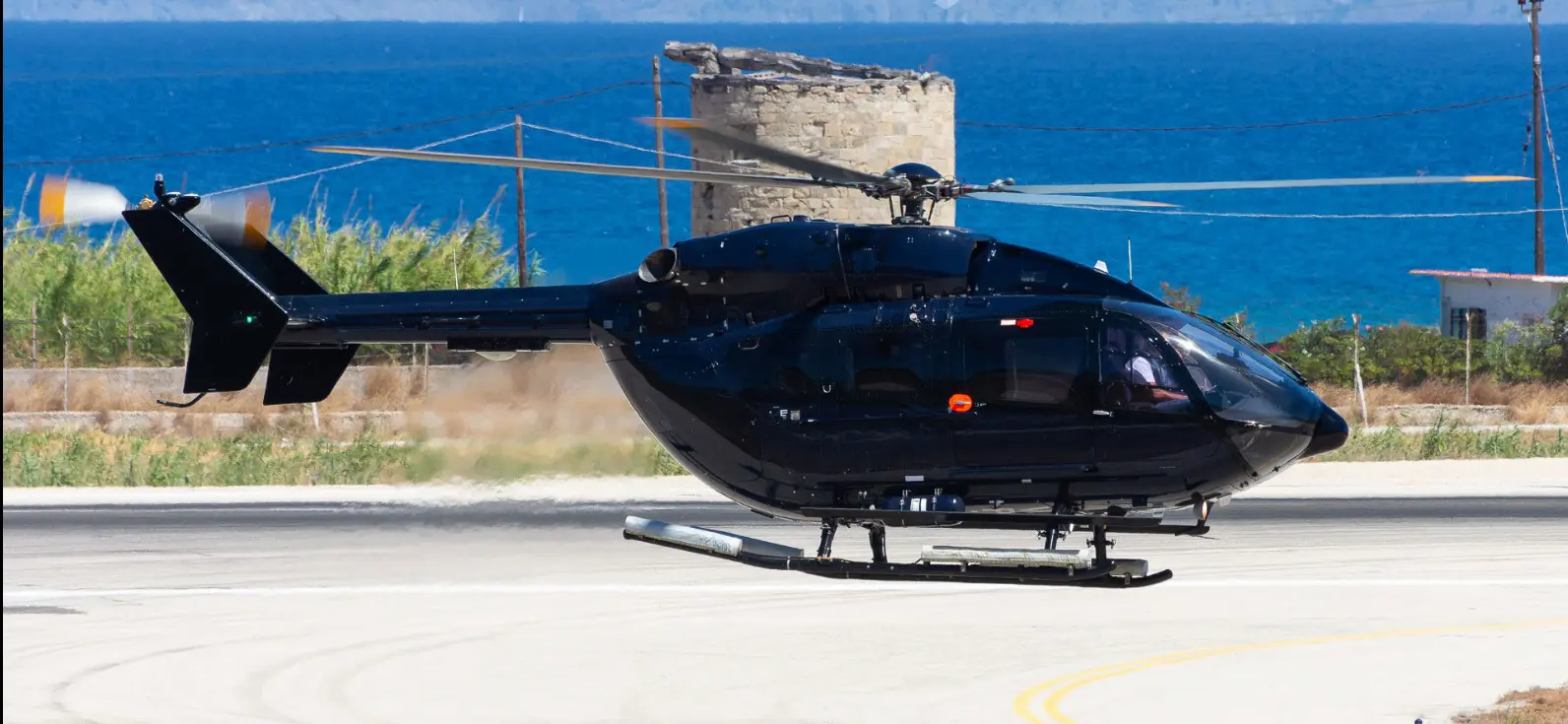

2013 Eurocopter EC 145T1

Sold

S/N: 9570

EC145T1 Standard configuration will be provided on request.
Pilot and co-pilot seat AAT corporate
Sun shade
Inst Flashlight Pilot & Copilot
First Aid Kit
Emergency hammer inst pilot door
Fire Ext Portable
Cargo hook mirror FP
Sling cargo hook FP
Dual controls
Fabric Glare shield 7” LH
Inst Glare shield (chart Holder) RH
Hoist FP (L/H & R/H)
Emergency Flotation System FP /RP
Fixed landing light DEL (cross tube)
Search and landing light 400W/ 200W
Mod cockpit helmets holder
Blades Folding FP
Inlet Barrier Filter IBF System FP
IBF system parts ( L/H & R/H with oiled filters installed)
Pilot + copilot headsets
Crew life jackets
First aid kit (L/H cargo door)
Lashing points 60-100 kts (without lashing belts)
Jettisonable cockpit doors
Jettisonable sliding doors
Air Conditioning System Metro Aviation
Mod Pulselite System
AEM Lamp dimmer
Improved door caution indications for the sliding doors SB 52-023
Installation of anti-slip fittings on the maintenance steps SB 53-019
Anti-slip surface on the cabin roof SB53-015
New wiper gearbox assembly and wiper arm SB30-002
Installation of heat protection on engines cowlings SB 71-001
Replacement of the NVG LED position lights at the horizontal stabilizer SB 33-023
Collective lever protection pilot & copilot SB 67-023
AAT” quick conversion” Kit FWD LH / RH locker system
AAT” quick conversion” Kit AFT LH/RH locker system
ELT C406N HM incl. NAV Option (Artex)
Pulselite STC
Flightcell DZMx Satcom System
09 Life Vest Passenger
Life Raft

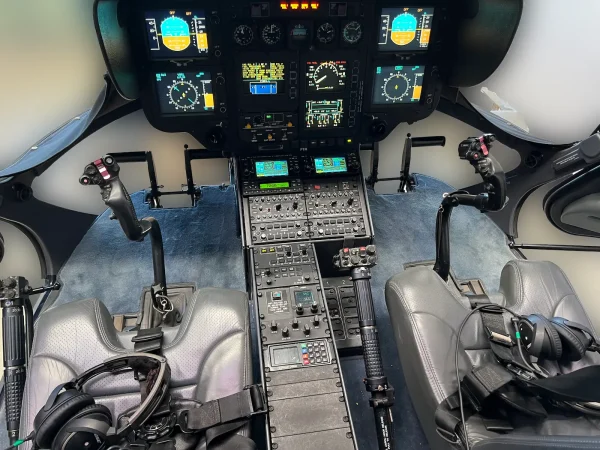

Avionic Pack AV PACK Dual Pilot IFR G430
Display system MEGHAS – Flight Control Display System (FCDS) Dual (4 x SMD45)
- SMD 45 (copilot) PFD: Primary Flight Display
- SMD 45 (pilot) PFD: Primary Flight Display
- SMD 45 (pilot) ND: Navigation Display
- SMD 45 (copilot) ND: Navigation Display
02 GPS / NAV / COM (pilot & copilot) GNS 430 (Garmin) interfaced with FCDS. Copilot, VOR/ILS interfaced with FCDS, GPS stand alone
Transponder (Mode S) GTX 330 Garmin
02 ICP´s (instrument Control Panel): MEGHAS
Instrument Control Panels
RCU: MEGHAS Reconfiguration Control Unit
02 Audio / Comm. Control unit ACU6100 (Pilot & copilot) and Remote Electronic Unit REU 6100 Beker
IC amplifier IC3100-4-01 Becker
Autopilot Control Unit
Marker beacon receiver / lights
DME Distance Measuring Equipment DMS-44A (Chelton / Wulfsberg)
VOR/ILS/MKR receivers Marker Beacon receiver / lights KR 21 (Honeywell)
ELT C406N HM incl. NAV Option (Artex)
M’ARMS® CVFDR (Solid State Cockpit Voice and Flight Data Recorder)
Moving Map EURONAV IV-RN6 CM (Euro Avionics) interfaced with FCDS fix provisions
Weather radar Bendix King RDR 2000
Flight cellule DZM Satecom
ADF System RCVR DF-431B Bendix/ King
TAS 620
TCAS installation
AHRU (Attitude Heading Reference unit)
MFDAU (Miscellaneous Flight Data Acquisition Unit)

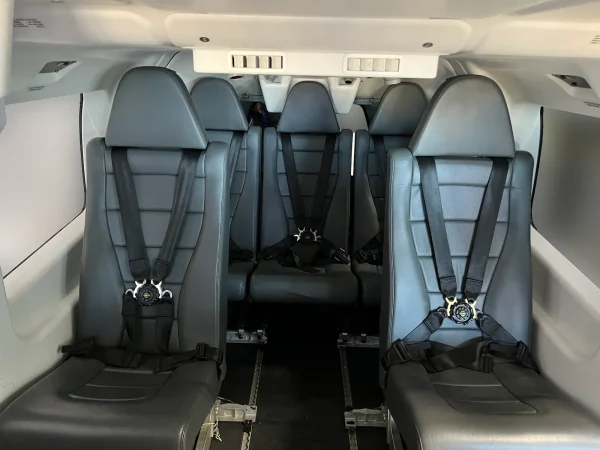

3 Pax seats against flight direction AAT (front)
2 Pax seat in flight direction AAT (middle)
3 Pax seats in flight direction AAT (aft)
Passengers headsets (onseats)
Pax life vests X 8 (below each seats)
Air Ambulance Technology of EMS VP interior and VIP interior “Quick Conversion Kits STC”
Troop seats Bae Systems
Cargo Doors
Vapor Cycle Airconditioner from Metro Aviation Inc STC
Pulselite STC
Flightcell DZMx Satcom System
